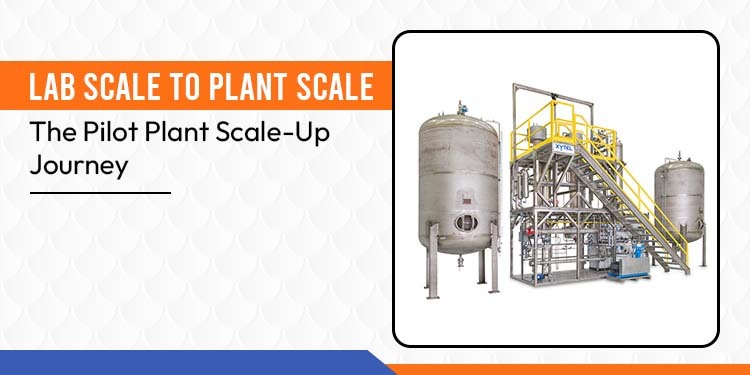

Lab Scale to Plant Scale: The Pilot Plant Scale-Up Journey

Lab Scale to Plant Scale: The Pilot Plant Scale-Up Journey

Every great industrial innovation begins small,  a new reaction pathway in a pharmaceutical lab, or a novel synthesis route perfected by chemical engineers. But taking these bench-scale successes and turning them into commercially viable processes is never straightforward. This is where pilot plants come in. Sitting between the lab bench and full production, they provide the testing ground where science meets reality, revealing the challenges, opportunities, and adjustments needed to make scale-up possible.

Why Pilot Plants Matter

A pilot plant is neither a laboratory setup nor a full manufacturing facility; it’s an intermediate stage designed to mimic real-world conditions without the massive costs of commercial scale. Typically, these facilities operate at 10-100 times lab scale, while still being 10-100 times smaller than production units.

So why are they so valuable?

• Catching Problems Early

  What looks perfect at 100 ml in a lab may turn problematic at 100 liters in a pilot reactor. Mixing inefficiencies, heat transfer limitations, or material handling issues often show up here, long before they cost millions at full scale.

• Regulatory Confidence

  In pharmaceuticals, regulators expect proof that processes are safe, consistent, and repeatable. Pilot-scale data demonstrates this reliability across multiple conditions, becoming the backbone of submissions and approvals.

• Economic Reality Check

  Lab results provide trends, but business decisions need hard numbers. Pilot plants measure actual raw material usage, utilities, labor, and cycle times, helping companies answer the crucial question: “Will this process actually make money?”

The Science of Scale-Up

Scaling up isn’t about simply “making things bigger.” The laws of physics and engineering shift as processes grow, and those shifts demand careful attention.

• Maintaining Similarity with Dimensionless Numbers

  Engineers use tools like Reynolds numbers (for flow behavior) and Froude numbers (for mixing) to ensure pilot and plant conditions stay comparable. Without these checks, performance at full scale can diverge dramatically.

• Heat Transfer Challenges

  At larger scales, the surface-to-volume ratio shrinks, making it harder to dissipate heat. What runs smoothly in a 50-liter vessel may overheat dangerously in a 5,000-liter one. Pilot trials help engineers design cooling and heating strategies that prevent runaway reactions.

• Mixing Complexity

  Lab mixing often relies on simple stirrers. Commercial equipment, however, demands precise impeller design, power calculations, and advanced fluid dynamics. Pilot plants help uncover the right configurations before committing to costly equipment.

Laboratory Evaporators: The First Test of Scale-Up

One of the first areas where scale-up challenges appear is in laboratory evaporators. Though they seem straightforward, mastering them provides critical insights for plant-scale operations.

• Temperature Strategies

  Heat-sensitive compounds need gentle evaporation, while robust materials can tolerate higher energy input. Documenting these thermal behaviors early guides later design choices.

• Surface Area Scaling

  Evaporators maximize efficiency through thin films and droplet formation. At larger scales, generating equivalent surface area is harder and more expensive. Pilot runs allow evaluation of viable alternatives.

• Vacuum Systems

  Vacuum enables low-temperature operation but becomes harder to maintain in large units. Bigger systems mean higher pumping demands and greater risk of leaks. Pilot testing defines practical operating ranges.

• Process Control

  Automated controls stabilize evaporation conditions. Developing and testing these controls at pilot scale ensures they’re robust enough for commercial systems, where manual intervention isn’t realistic.

Key Guidelines for Scale-Up:

• Record heat flux per unit surface area
• Validate vapor handling capacities for larger vessels
• Stress-test automated control under varying loads
• Ensure cleaning and maintenance methods work at scale

Conclusion

Pilot plants bridge the critical gap between laboratory success and commercial viability. They expose hidden technical challenges, validate regulatory and economic feasibility, and provide engineers with the data needed for confident decision-making. Whether it’s fine-tuning heat transfer in reactors, optimizing mixing systems, or testing evaporator performance, pilot plants ensure that scale-up is not a gamble but a guided, informed process. In today’s competitive industrial landscape, they are not just optional; they are essential stepping stones to innovation at scale.
